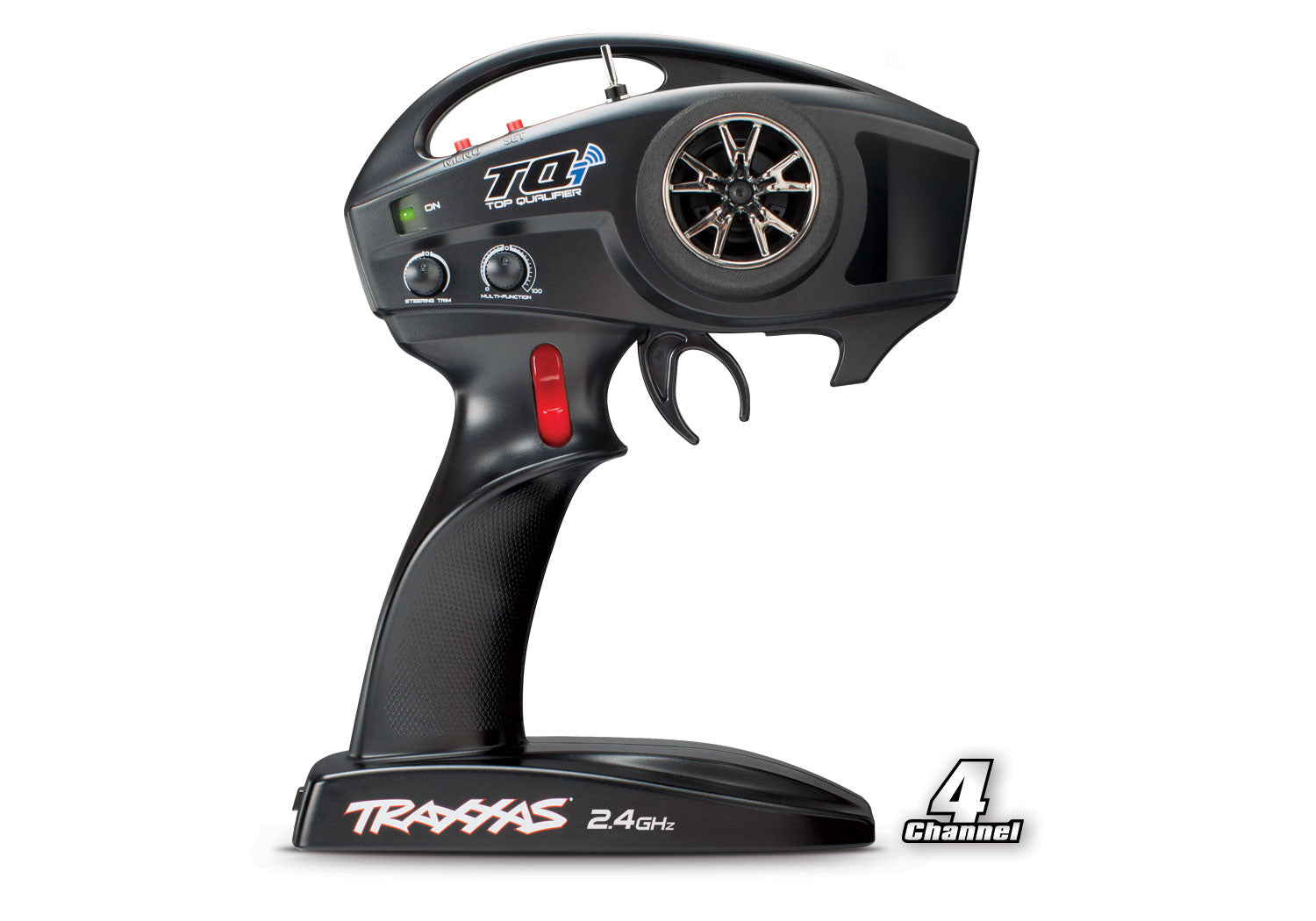

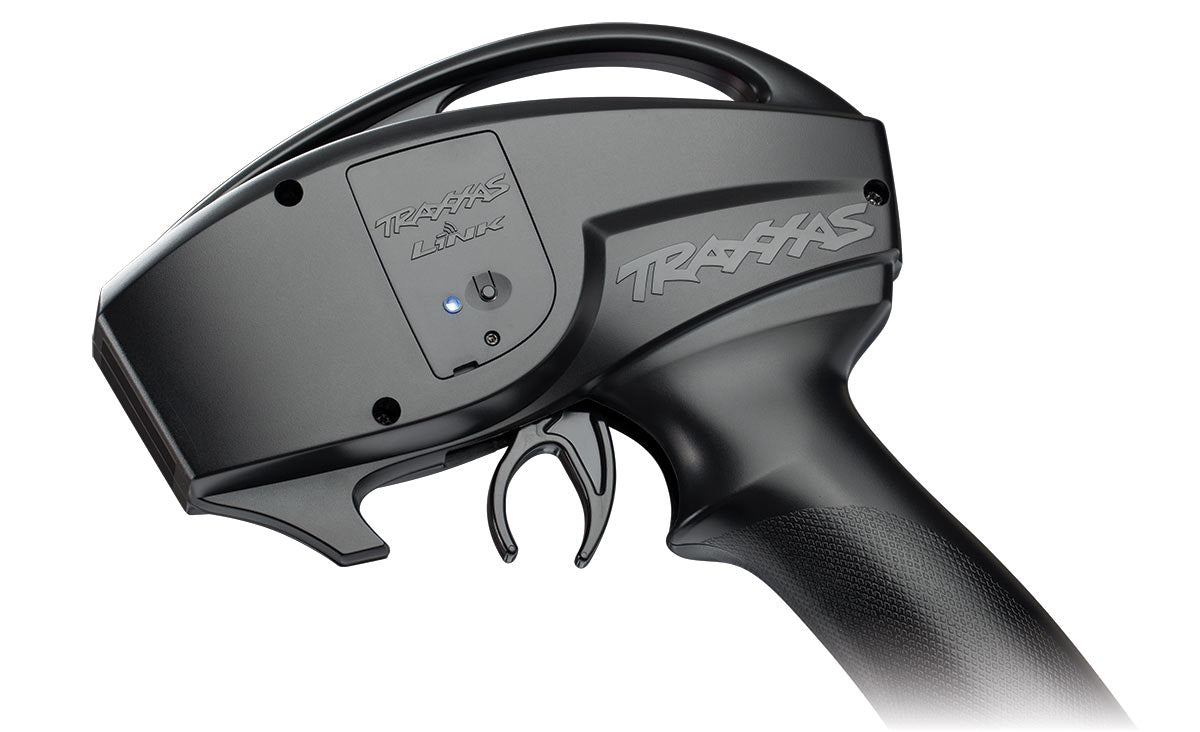

Total Control. Traxxas models deserve the world's most advanced Ready-To-Race® radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Traxxas Link Wireless Module (#6511) that turns your Android, iPhone®, iPad®, or iPod touch® into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.
The EVX-2 delivers an incredible 16.8 volts from two battery packs. Designed by Traxxas, the EVX-2 features a completely waterproof design, low-voltage detection, three drive profiles, Thermal Shutdown Protection, and gold-plated, high-current battery connectors. The EVX-2 also includes patented Training Mode™. This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.
The patented Traxxas High-Current Connectors are designed to handle high-current applications and funnel maximum power to your vehicle’s electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.
Summit gets its spin from the largest motor of any electric monster truck—the Titan 775. This massive mill is equipped with a fan-cooled armature for nonstop off-road adventure, and an extra wrap of steel around the can for maximum magnetic field strength—that means more torque to tame the trail and conquer any climb. Summit's single-motor mount keeps the Titan 775 powerplant low and tight to the chassis for a low CG and surefooted handling.

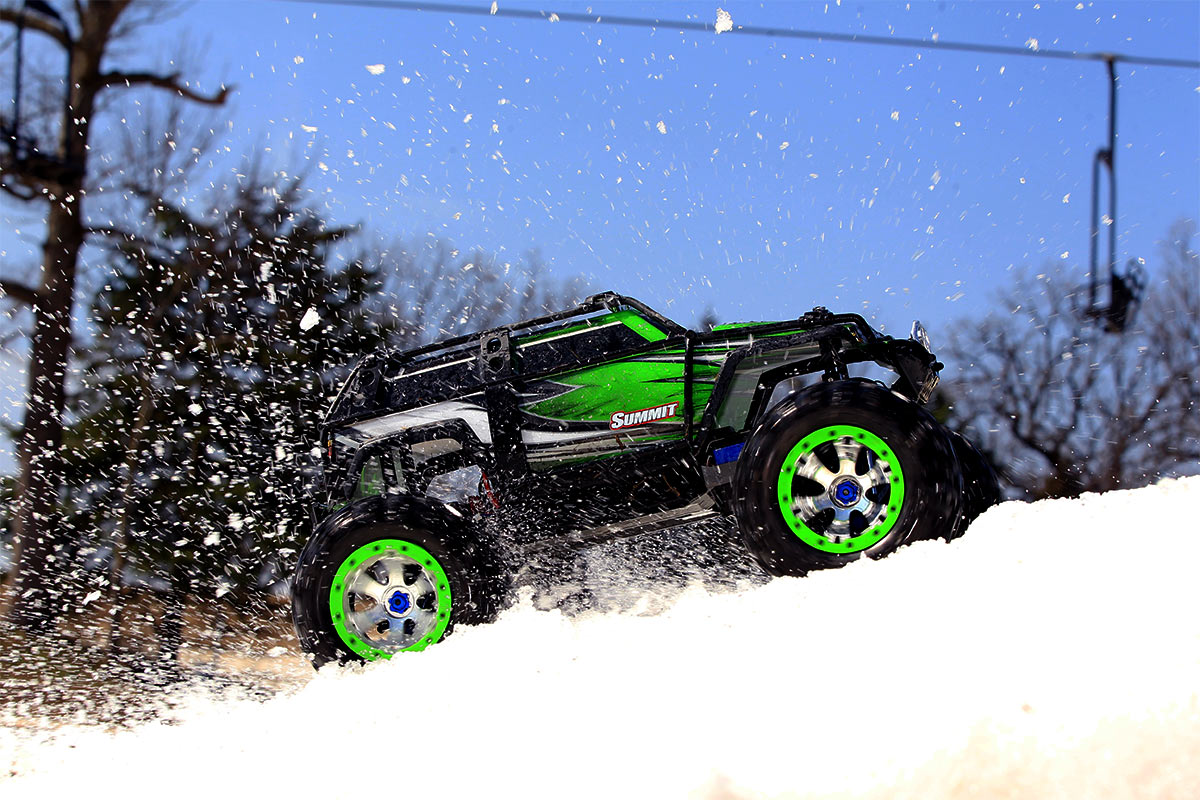

Summit is the latest truck to feature Traxxas' exclusive waterproof electronics. This exclusive Traxxas innovation opens the door for driving fun in water, mud, snow, and other wet conditions that stop others dead in their tracks. The patented waterproof electronics box allows the installation of your own radio system without losing the watertight properties.

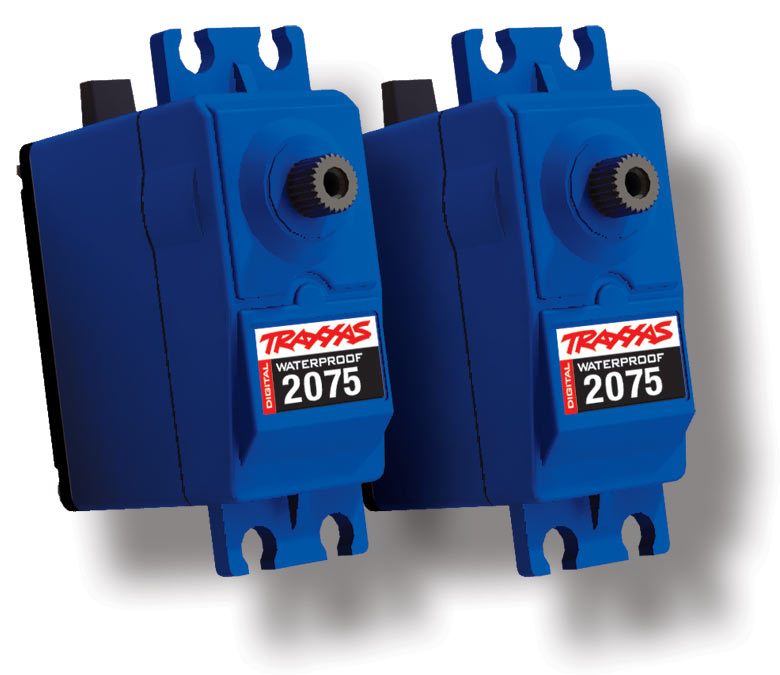

Waterproof digital steering servos (#2075) use O-ring seals to keep the fun going when things get wet. Twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response with a full 250 oz. in. of tire-turning torque and quick .16-second transit time. The servos operate a ball-bearing-supported bellcrank with an integrated servo saver for precise control and rock-conquering durability.

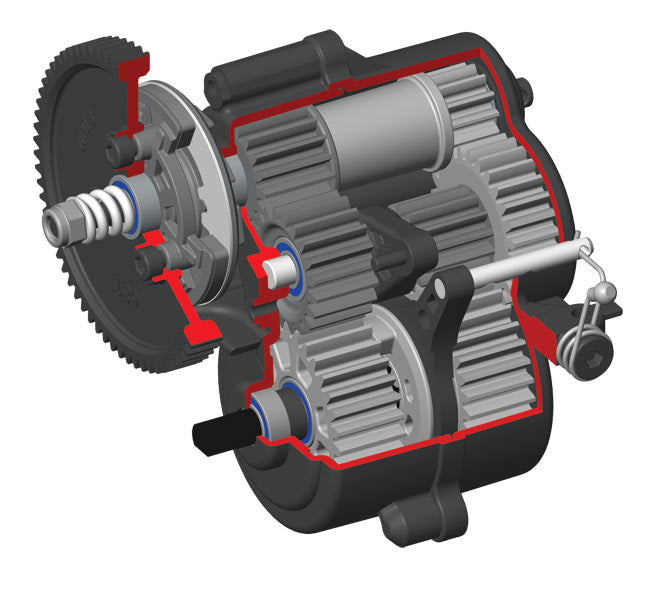

Not only is Summit the first truck to offer remote locking diffs, it's also the only truck equipped with a remote-shifting High-Low transmission. In low gear, Summit's 70:1 final-drive ratio turns rpm into pure torque to power up and over any obstacle that dares to get in the way. Upshift to high for a 25:1 ratio and all the speed you need to attack jumps and make tracks in a hurry.
Summit's transmission is skillfully configured to sit low in the chassis and hold the Titan 775 motor as low as possible for best climbing performance, even at very steep angles. The low-CG transmission also gives Summit sure-footed handling on the trail. An oversized steel idler gear and patent-pending Torque Control™ slipper clutch are built to handle the massive torque of Summit's power system.

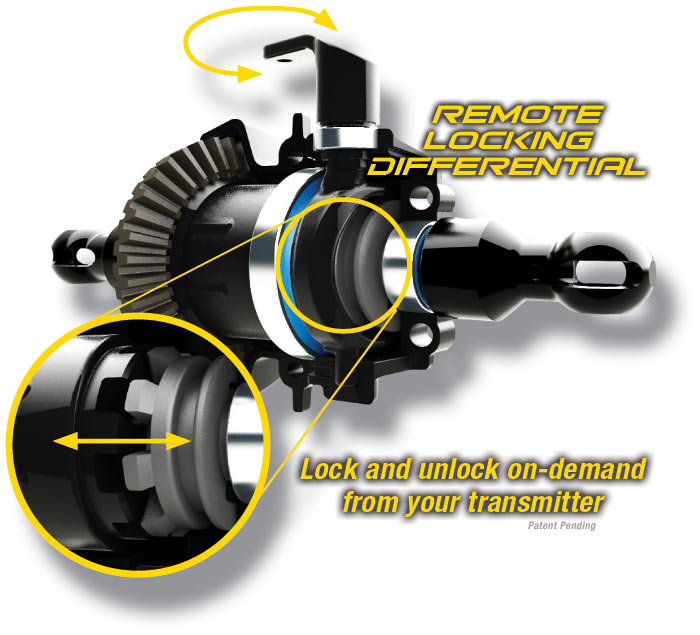

For the first time, it is possible to switch from the smooth handling of silicone-filled differentials to the tenacious traction of locked diffs just by flipping a switch on the transmitter. At your command, the servo-actuated T-Lock™ system engages eight steel drive dogs to lock the differential. Match the locking mode to the challenges of the terrain; Summit's T-Lock differential system allows you to select front-lock for dig-style turns in tight quarters, front and rear lock for total climbing traction, or front and rear open differentials for optimum handling and a tight turning radius. Patent pending.

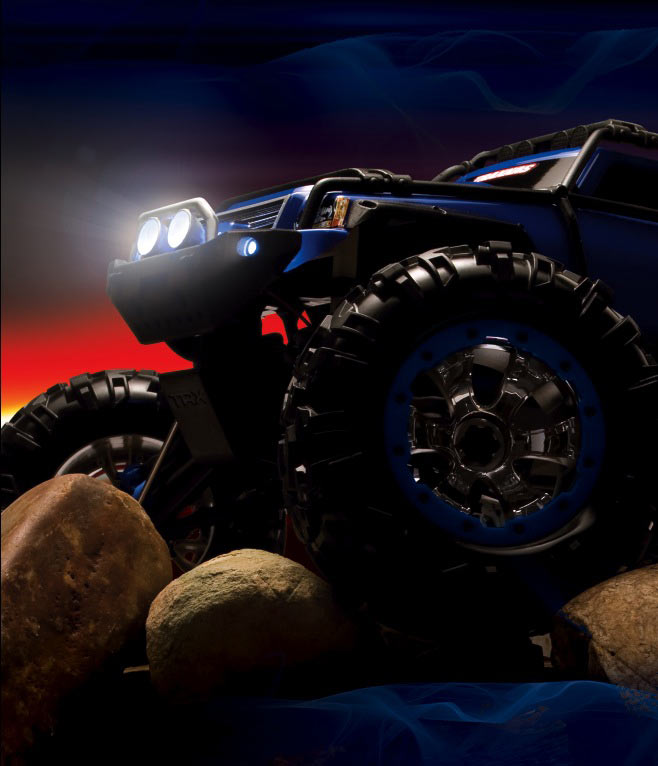

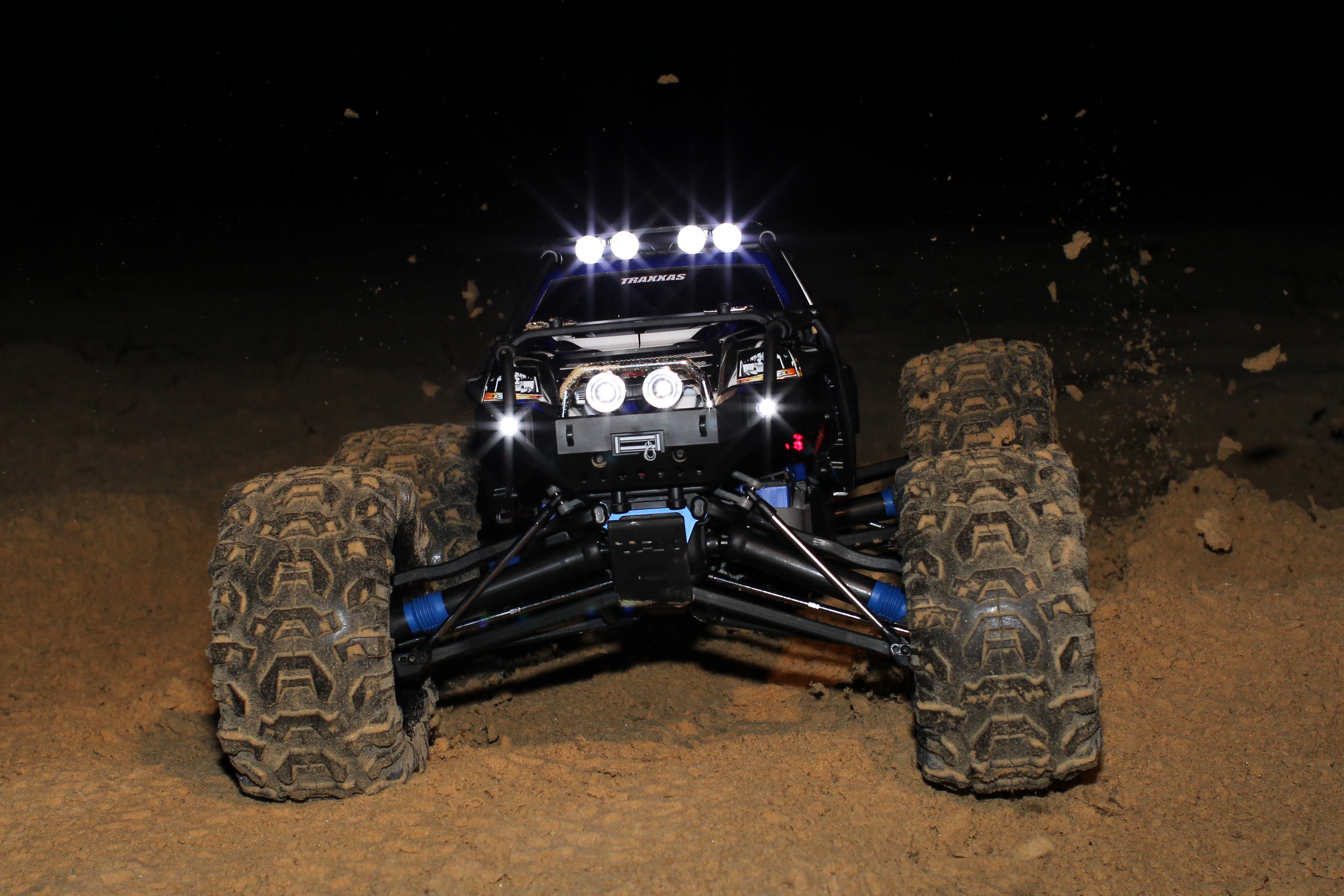

No need to head for the garage when the sun goes down; Summit lights up the night with an integrated LED illumination system. Four bright white LEDs blaze the trail ahead, while six red LEDs show where Summit's been. The LEDs are integrated into the bumpers for durability and convenience, and the chassis-mounted wiring harness eliminates the possibility of tangles and hooked wires.
Summit's aggressive SUV-style bodywork doesn't just look tough; with its bolt-on fender flares and tube-style ExoCage skeleton, it's as rugged as a real rock rig. Flexible to bounce back after a rollover yet tough enough to spare the lexan body from rock-rash, the ExoCage combines authentic real-rock-rig looks with genuine protection.
An off-road machine is only as good as its tires, and Summit delivers with the biggest, gnarliest Traxxas tire ever—the Canyon AT. This multi-terrain tread features aggressive, angular lugs that dig in on dirt, grass, roots, and rocks to get Summit up and over anything you aim it at. Soft foam inserts let the rubber conform to surfaces for maximum grip, and new Geode rims hold the tires tight with beadlock style. The removeable rings protect the rim edges and tire sidewalls from rock rash and lend additional support to the tire/rim glue joint.
Locked differentials, a powerful motor, and high-traction tires are the perfect recipe for overstressed driveshafts, so Summit is equipped with the toughest Traxxas shafts ever. The smooth-sliding, true-curvilinear spline design is now even stronger thanks to CV-style joints on each end—an industry first. The joints' crosspins are supported by the full diameter of the shaft, so even the heaviest torque loads won't pop the joint.
High-traction tires and a low-speed technical climb—that's a combo that demands a lot of steering torque, and Summit delivers with a dual-servo system. Each servo is rated for 125 oz.-in. of torque, giving Summit a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.

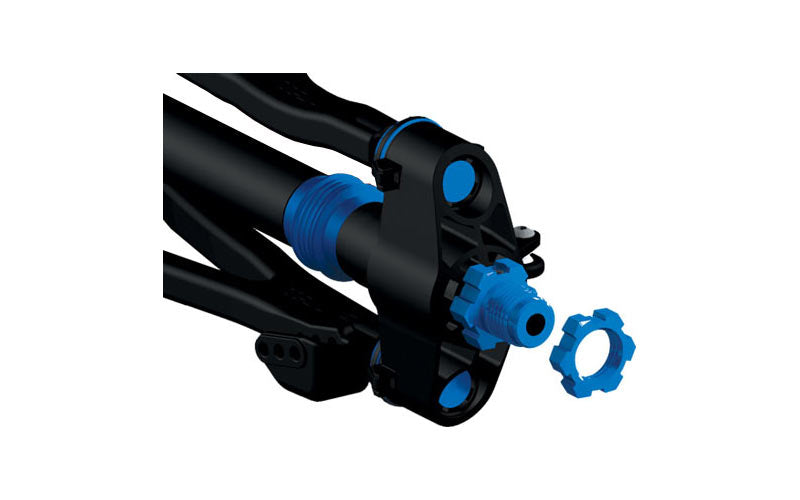

17 mm splined aluminum hex hubs deliver all of Summit's considerable torque directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard Summit pulls at the tires.

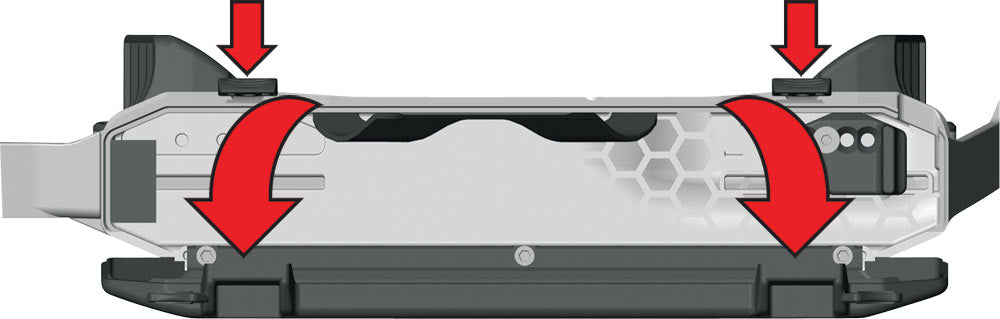

Summit uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.
Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places Summit in a class of its own.

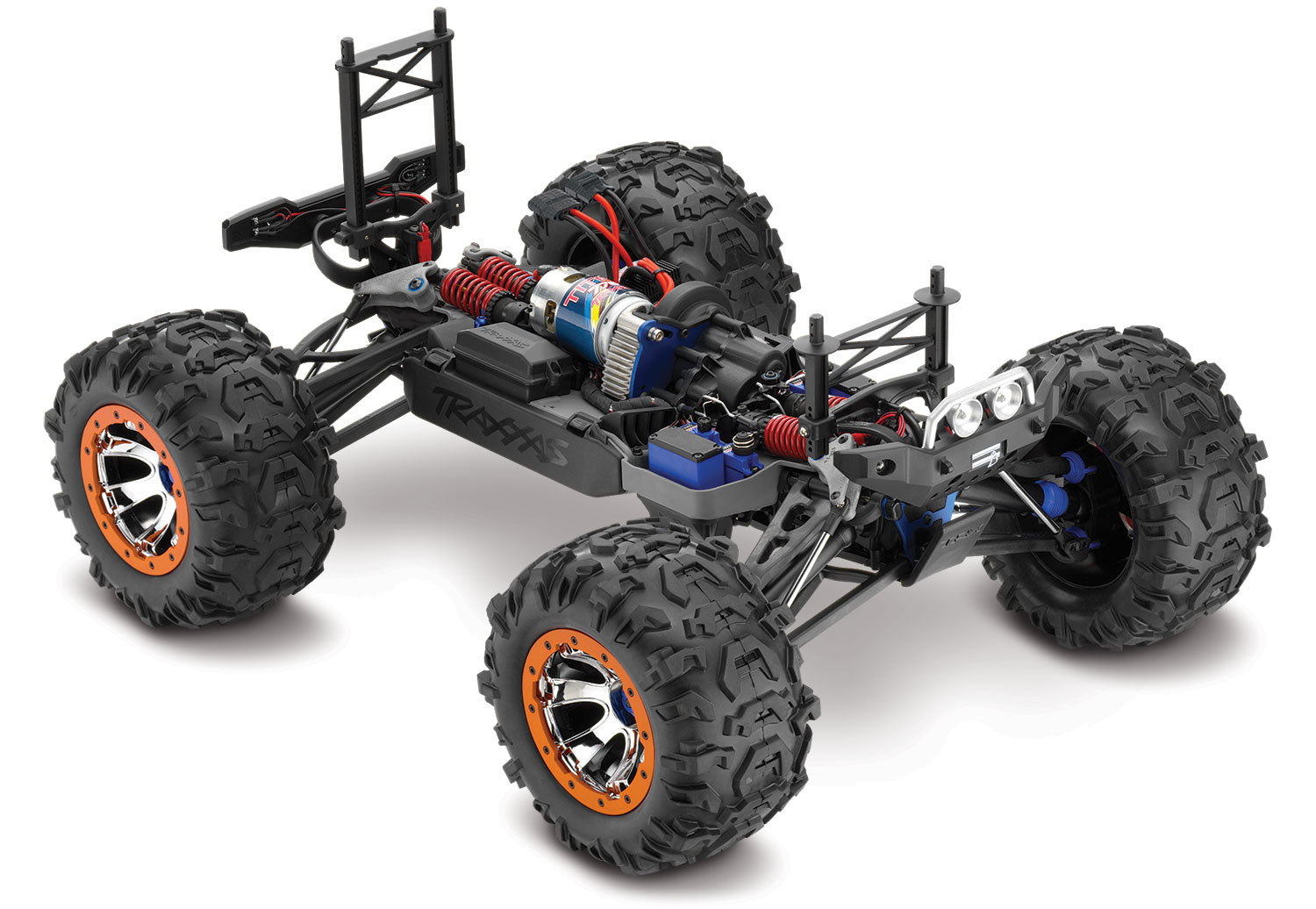

Summit's groundbreaking molded chassis sets a new benchmark for electric monster truck looks and performance. The chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of battery* configurations to unlock Summit's power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible, allowing for steeper climb angles, greater side-hill stability, and responsive handling at speed.
The smooth center skid plate both protects and strengthens. Critical driveline components are shielded from the elements for long life. A cover provides access for maintenance. Summit's smooth underside slides over rocks and other obstacles to keep you rolling when other trucks have to head for home.

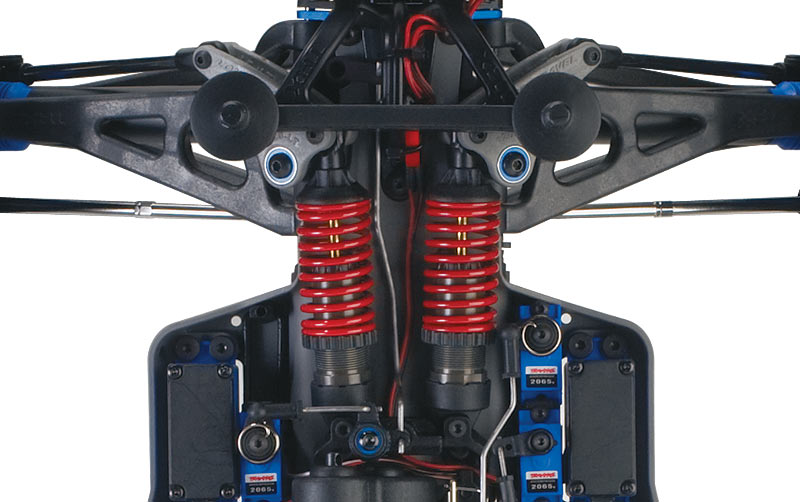

Summit wears the best shocks in the business, our hard-anodized, PTFE-coated GTR dampers. Threaded bodies and oversized spring collars make it easy to set preload, and long-wearing, low-friction titanium-nitride shafts provide slick shock action for superior suspension response and reliability.
Ultra-long-travel suspension gives Summit more travel and articulation than any other monster truck, while the independent suspension and tall Canyon AT tires allow incredibly steep approach angles and sky-high ground clearance no other truck can match.
Summit model 56076-4 comes fully-assembled and Ready-To-Drive® with the TQi™ 2.4GHz four-channel radio system installed and adjusted, Traxxas Stability Management, waterproof electronics with EVX-2 Electronic Speed Control, ExoCage painted body, pre-glued tires, and Quick Start Guide. Traxxas backs the Summit and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Summit to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).
MODEL 56076-4: Fully assembled, Ready-To-Drive® with TQi™ 2.4GHz 4-channel radio system, waterproof electronics with EVX-2™ Electronic Speed Control and ExoCage™ painted body.
