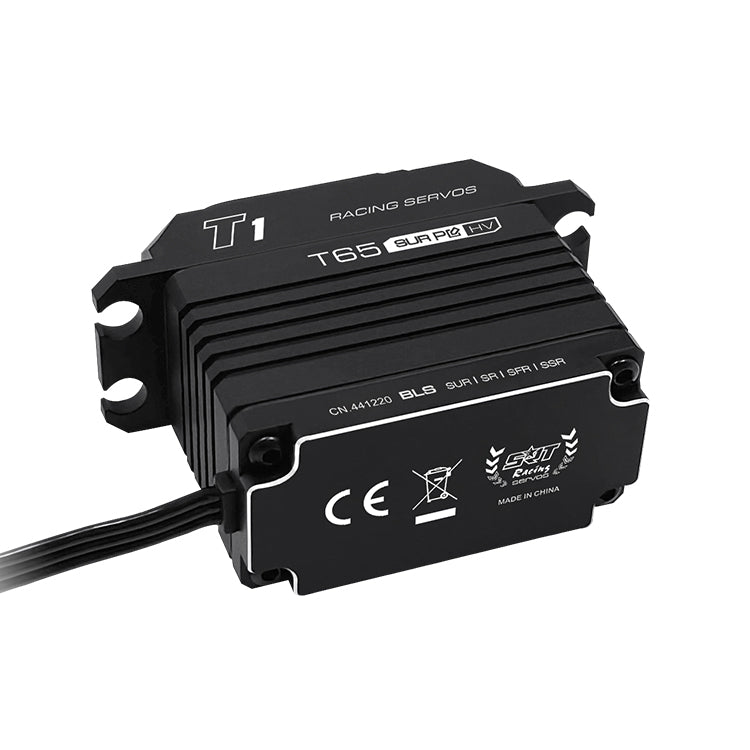

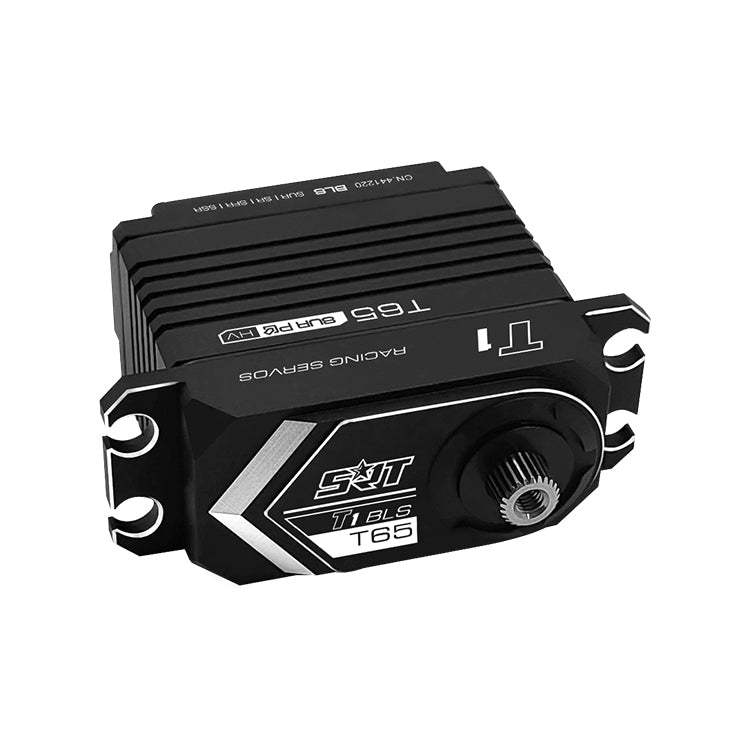

SRT T65 1/8-1/5 CNC aluminium case 45KG 0.074S. HV BRUSHLESS SERVO

KEY FEATURES

Ideal for 1/8 on road and 1/5 off road scale applications

Superior Holding Torque

Incredible efficiency and low power consumption

Standard dimension make it perfect for vehicles that can benefit from a high quality servo

CNC Machined aluminum case for exceptional cooling

Programmable High torque Brushless servo

SSR mode compatible

25T output shaft

2 μsec Dead Band

1-Year Limited Warranty

Application:
1/8 and 1/5 off-road and on-road

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
Control system: pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.092 sec/60 degrees at no load
Operating speed (7.4v): 0.074 sec/60 degrees at no load
Operating speed (8.4v): 0.065 sec/60 degrees at no load
Stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
Stall torque (7.4v): 45.0kg.cm (625.0 oz/in)
Stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
Potentiometer drive: direct drive
Dimensions: 40.7x20.5x39.0 mm /1.60x0.81x1.54 in
Weight: 83.0g (2.93 oz)
Connector wire length: jr 300 mm
