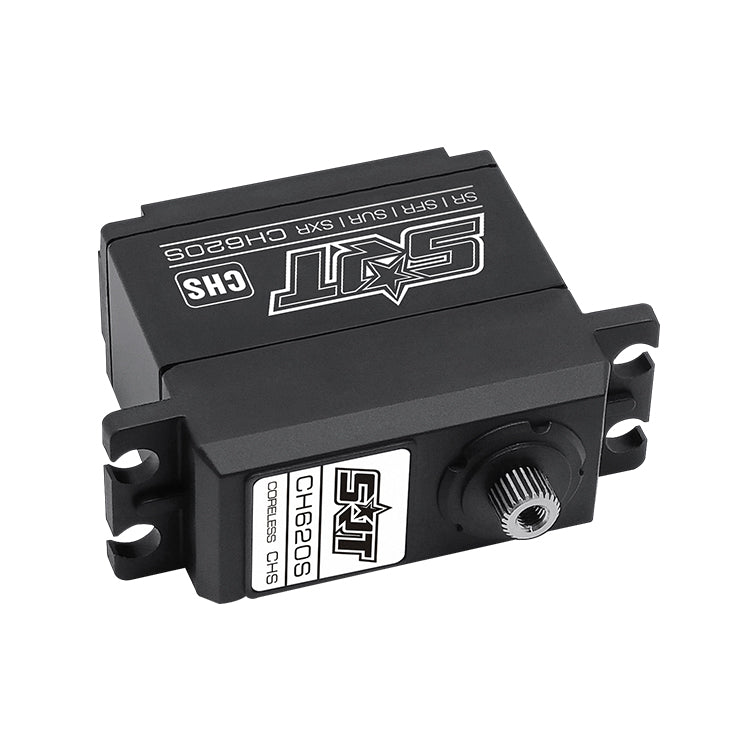

SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo
SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo

SRT CH620S HV (0.09s/20.0kg/8.4V) Coreless Servo

Τιμή πώλησης
€51.90
Κανονική τιμή
€59
Αποταμιεύεις
€7.10 (12%)
Ο φόρος περιλαμβάνεται και η αποστολή υπολογίζεται στο ταμείο
Μόνο 2 απομένουν σε απόθεμα!

Frequently Bought Together
SKU: CH620S

We Accept

PayPal

Product Information

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
  • Incredible efficiency and low power consumption
  • Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless

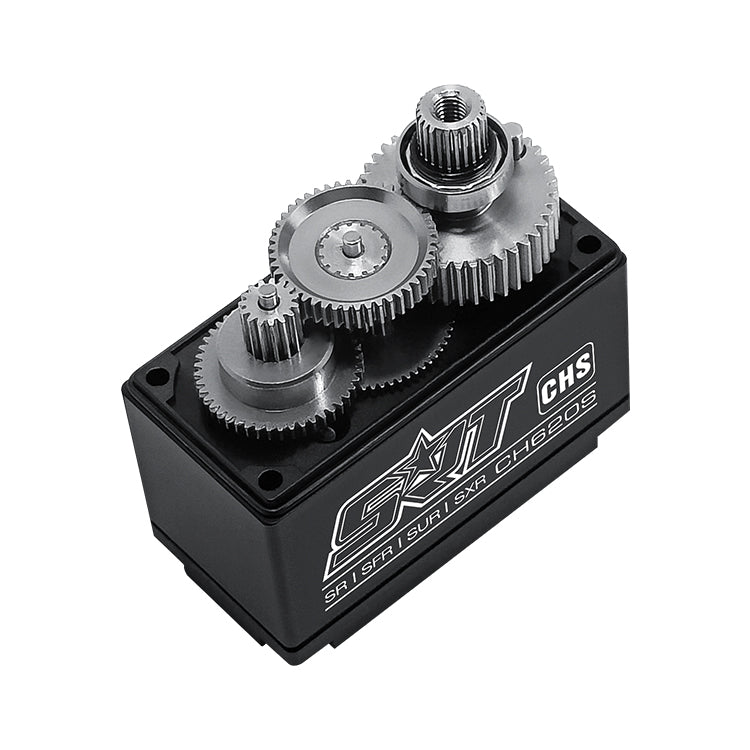

Gear Type: Metal
Gear Material: Titanium & Alu
Control system: Pulse width control
Working frequence: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0V): 0.12 sec/60 degrees at no load
Operating speed (7.4V): 0.10 sec/60 degrees at no load
Operating speed (8.4V): 0.09 sec/60 degrees at no load
Stall torque (6.0V): 14.0kg.cm (194.4 oz/in)
Stall torque (7.4V): 18.0kg.cm (250.0 oz/in)
Stall torque (8.4V): 20.0kg.cm (277.7 oz/in)
Potentiometer drive: Direct drive

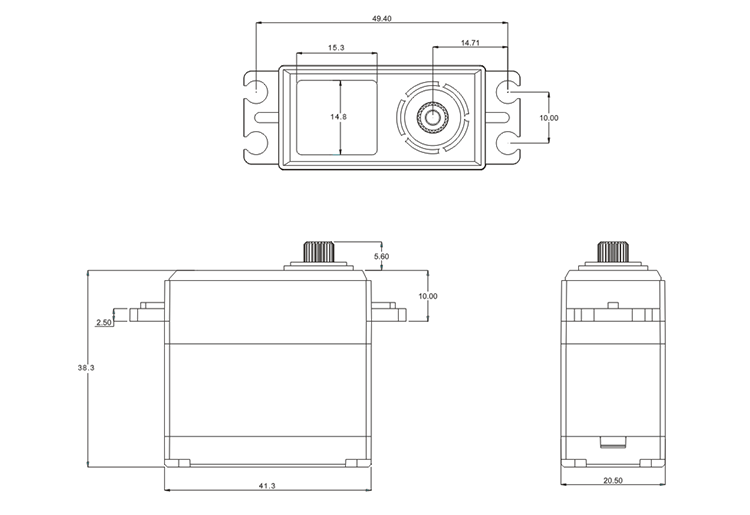

Dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
Weight: 69.0g (2.43 oz)
Connector wire length: jr 300 mm
