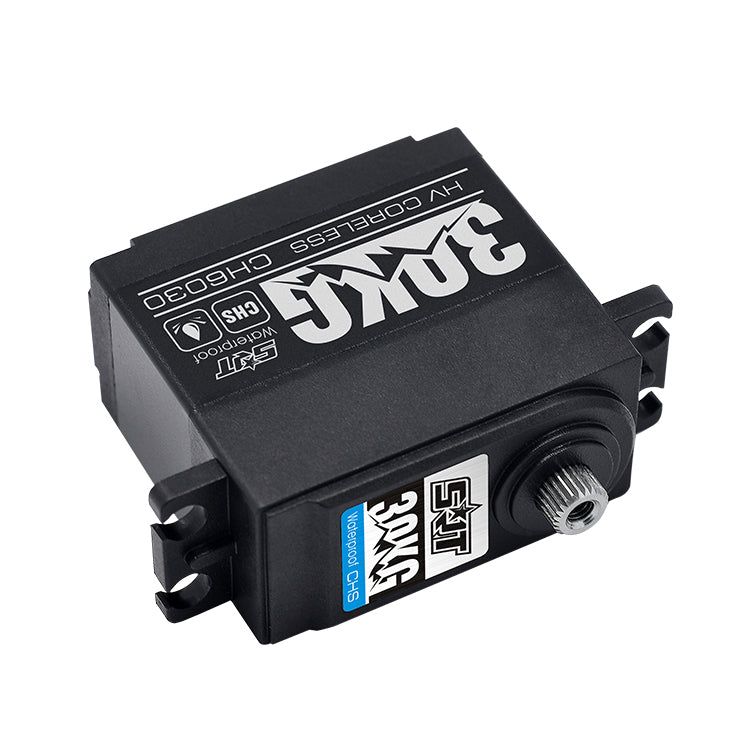

SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo
SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo
SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo
SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo
SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo
SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo

SRT CH6030 Waterproof (0.11s/30.0kg/7.4V) Coreless Servo

Τιμή
€54.90
Ο φόρος περιλαμβάνεται και η αποστολή υπολογίζεται στο ταμείο
Εκτός αποθέματος

Frequently Bought Together

Ειδοποίηση Αποθέματος

Λάβετε ειδοποίηση όταν αυτό το προϊόν είναι ξανά διαθέσιμο
SKU: CH6030

We Accept

PayPal

Product Information

Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications
  • Titanium & Steel gears for precision and durability
  • Intermediate aluminum case
  • NMB dual main bearings
  • Superior waterproof
  • 25T output shaft
Specifications:
Type Digital
Bearing Dual
Motor Type Coreless
Gear Type Metal
Gear Material Titanium & Steel
Control System Pulse Width Control
Working Frequence 1520μs / 330hz
Operating Voltage DC 6.0-7.4V
Operating Temperature Range -10 to + 60 degree
Operating Speed (6.0v): 0.12 sec/60 degrees at no load
(7.4v): 0.11 sec/60 degrees at no load
Stall Torque (6.0v): 25.0kg.cm (347.2 oz/in)
(7.4v): 30.0kg.cm (416.6 oz/in)
Potentiometer Drive Direct Drive
Dimensions 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
Weight 75.0g (2.65 oz)
Connector Wire Length JR 250 mm
