Description:

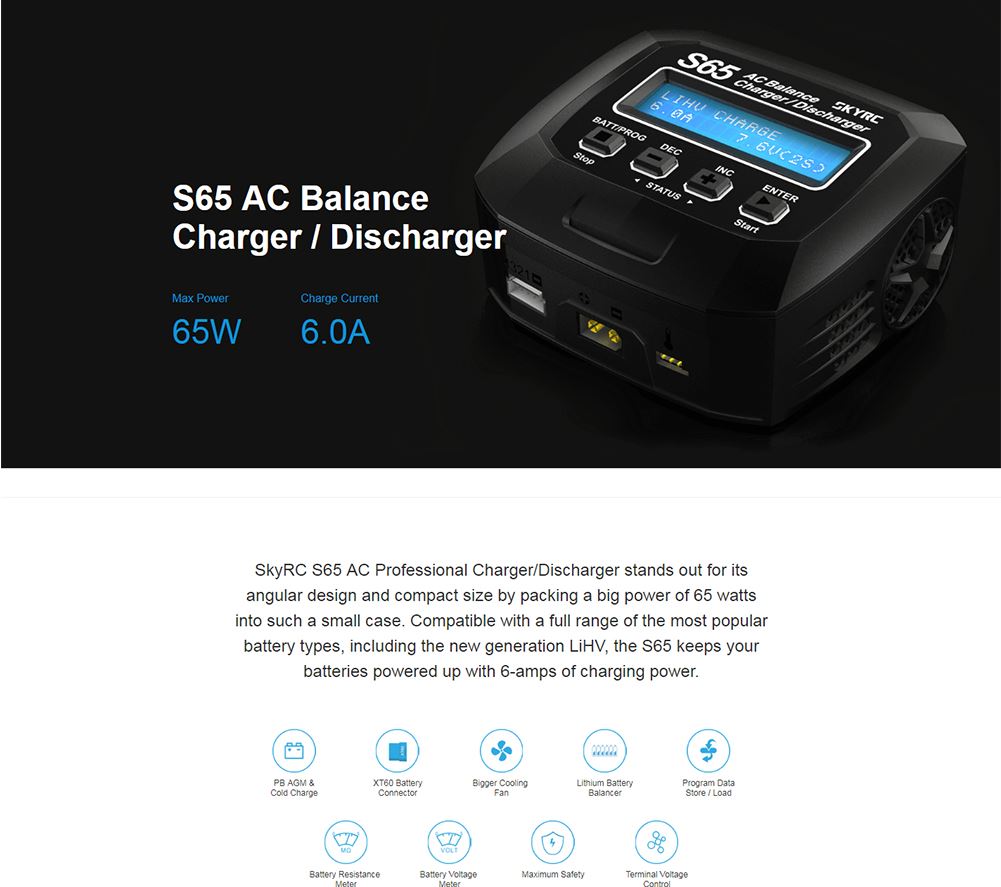

SkyRC S65 is an AC input high-performance micro processor control charge/discharge station with battery management suitable for use with all current battery types, LiPo, Lilon, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V. It is an AC input charger/discharger with compact size. The maximum charging power of S65 is 65W with maximum charging current 6A and discharging current 2A.
Feature:
- PB AGM & Cold Charge
- XT60 Battery Connector

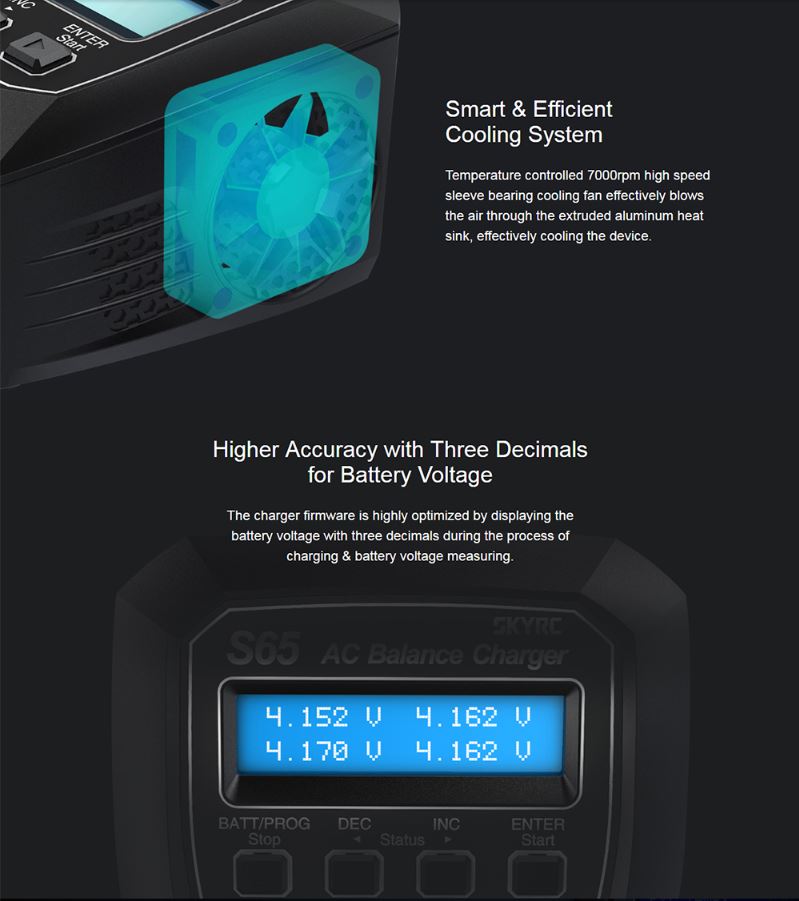

- Bigger Cooling Fan
- Lithium Battery Balancer
- Program Data Store / Load
- Battery Resistance Meter
- Battery Voltage Meter
- Maximum Safety
- Terminal Voltage Control
Specification:
- Input Voltage: AC 100-240V
- Charge Wattage: 65W
- Discharge Wattage: 10W
- Case Material: Plastic
- Case Size: 118x115x45mm
- Weight: 315g
- Battery Types/Cells: LiPo/LiFe/LiIon/LiHV: 2-4 cells, NiMH/NiCd: 6-8 cells, Pb: 3-6 cells
- Battery Capacity Range: NiMH/NiCd:100-50000mAh, LiPo/LiIon/LiFe/LiHV:100-50000mAh, Pb: 100-50000mAh
- Charge Voltage: NiMH/NiCd: Delta peak detection, LiPo: 4.18-4.25V/cell, LiFe: 3.58-3.7V/cell, LiIon: 4.08-4.2V/cell, LiHV: 4.25-4.35V/cell
- Discharge Cut-off Voltage: NiMH/NiCd:0.1-1.1V/cell, LiPo:3.0-3.3V/cell, LiFe:2.6-2.9V/cell, LiIon: 2.9-3.2V/cell, LiHV: 3.1-3.4V/cell
- Charge Current: 0.1A-6.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 2-4 cells
- Balance Current: 1000mA/cell Max
- Safety Timer: 1-720minutes off
- Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Include:
- SKYRC S65 65W 6A AC Balance Charger Discharger EU PLUG (1 pc)
