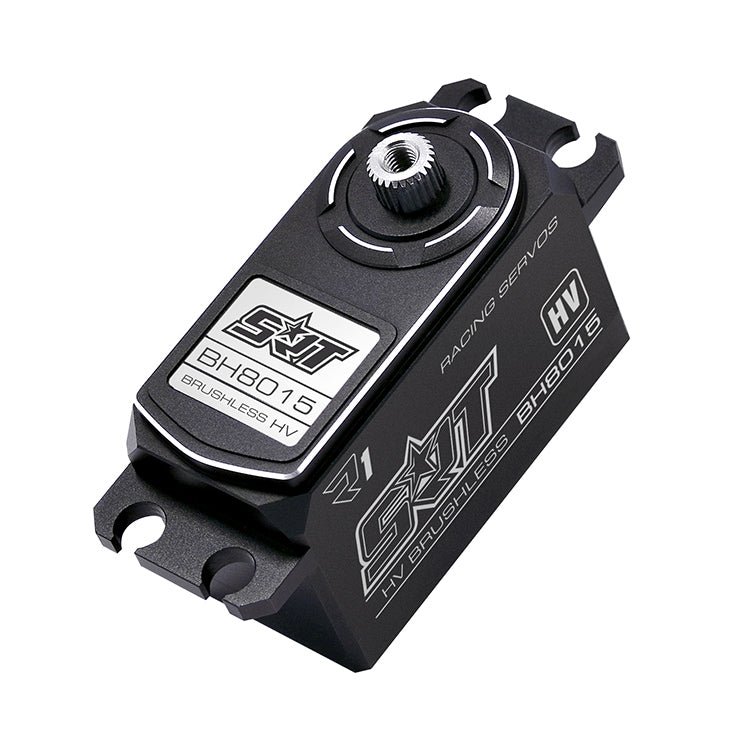

SRT BH8015 HV Brushless Servo - 10kg/0.065 Sec @6v - Low Profile - Full Alloy Case

Key Features

• Ideal for 1/10 On/Off Road scale applications
• Superior Holding Speed
• incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo

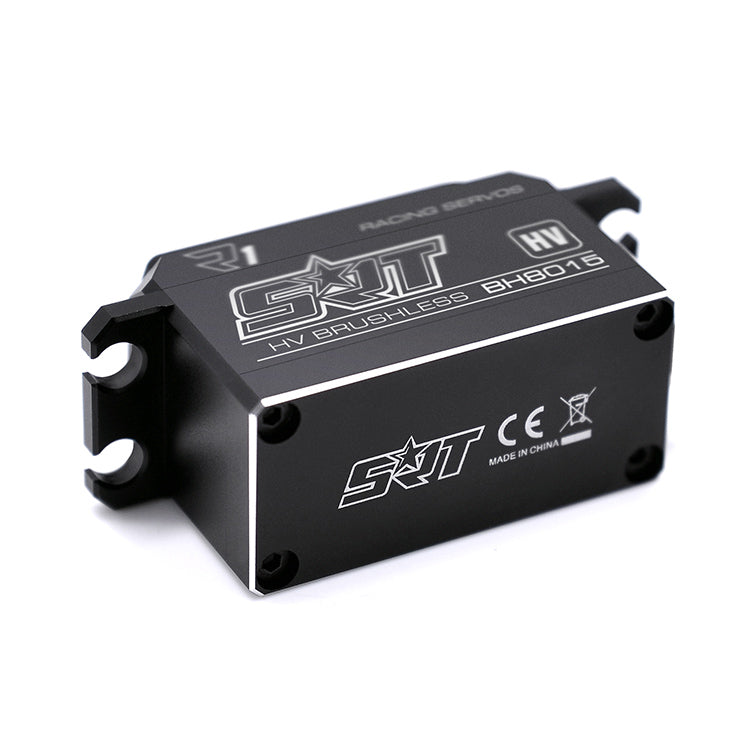

• CNC Machined aluminum case for exceptional cooling
• NMB dual main bearings
• 25T output shaft
• HD 4096 Resolution
• 2 μsec Dead Band
• 1-Year Limited Warranty

Product Specifications

• Weight: 52.0g (2.82 oz)
• Potentiometer drive: direct drive
• Operating voltage: dc6.0-8.4v
• Control system: pulse width control

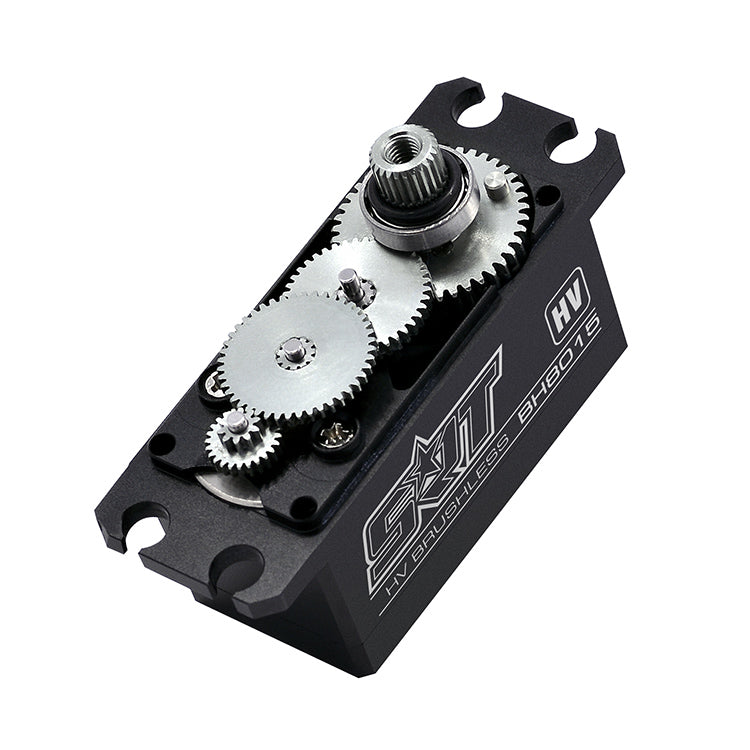

• Gear Type: Metal
• Bearing: Dual
• Operating speed (6.0v): 0.065 sec/60 degrees at no load
• Operating speed (7.4v): 0.055 sec/60 degrees at no load
• Operating speed (8.4v): 0.050 sec/60 degrees at no load
• Stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
• Stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
• Stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
• Type: Digital
• Motor Type: Brushless
• Gear Material: Titanium & Alu
• Working frequency: 1520μs / 330hz
• Operating temperature range: -10 to + 60 degree
• Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
• Connector wire length: JR 250 mm

SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
