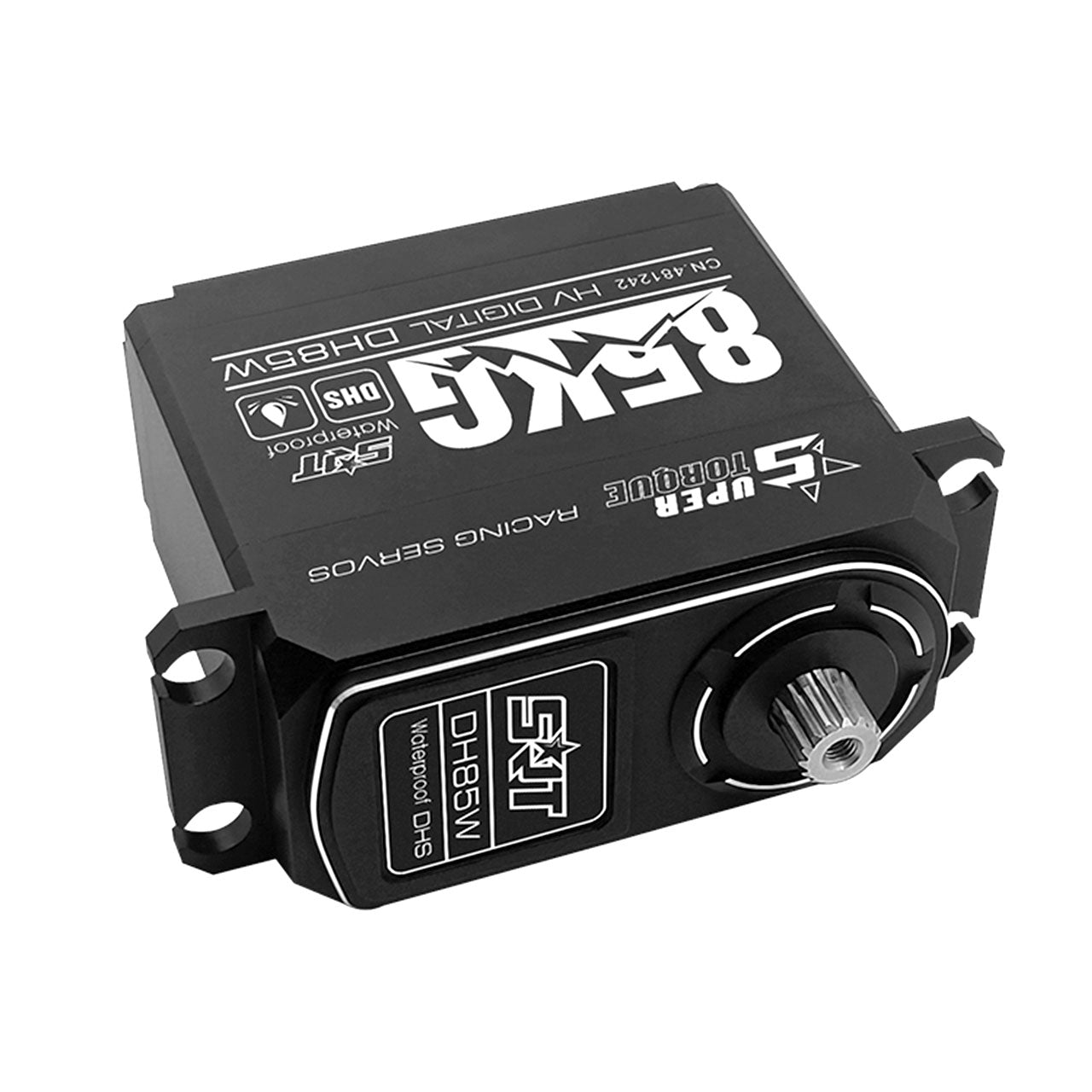

SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V
SRT DH85W Big Scale 85.0kg/0.15sec @8,4V

SRT DH85W Big Scale 85.0kg/0.15sec @8,4V

Sale price
€84.90
Regular price
€94.90
You save
€10 (11%)
Tax included and shipping calculated at checkout
In stock and ready for shipping
SKU: DH85W

Product Information

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Features:
  • Ideal for 1/5 on road and 1/5 off road scale applications
  • Incredible efficiency and low power consumption
  • NMB dual main bearings
  • Superior waterproof
  • 15T output shaft
  • 1-Year Limited Warranty
Specifications:
Type: Digital
Bearing: Dual
Motor Type: DC

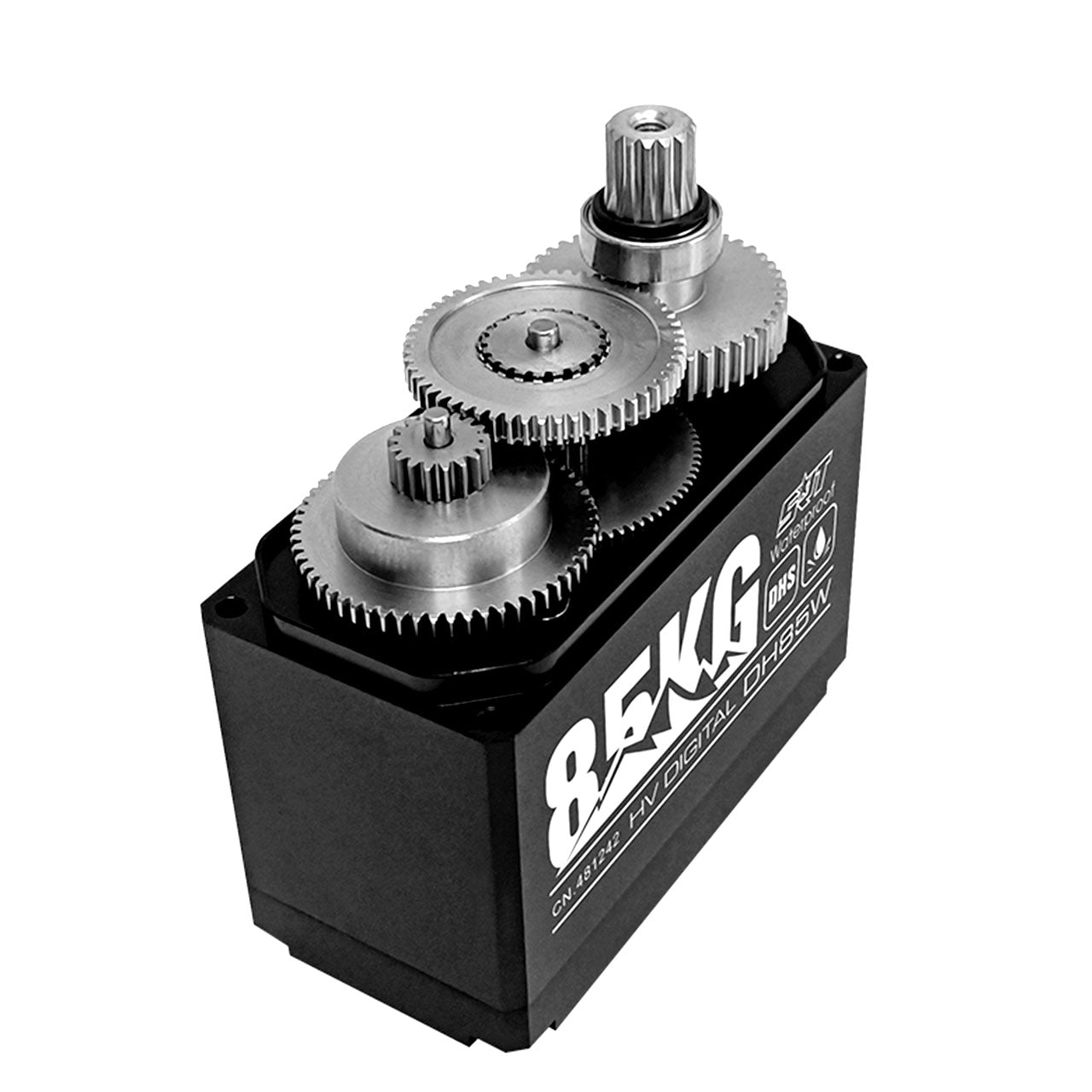

Gear Type: Metal
Gear Material: Steel
Control System: pulse width control
Working Frequence: 1520μs / 330hz
Operating Voltage: dc7.4-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (7.4V): 0.17 sec/60 degrees at no load
Operating Speed (8.4V): 0.15 sec/60 degrees at no load
Stall Torque (7.4V): 78.0kg.cm (1083.2 oz/in)
Stall Torque (8.4V): 85.0kg.cm (1180.4 oz/in)
Potentiometer Drive: Direct drive
Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
Weight: 200.0g (7.05 oz)
Connector Wire Length: jr 350 mm
