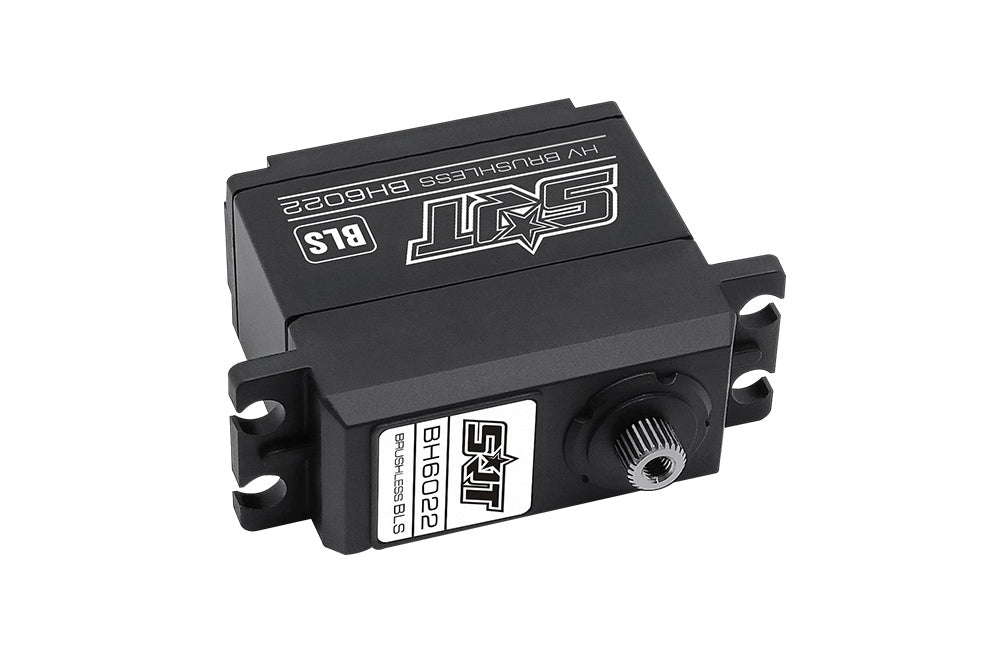

SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo
SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo

SRT BH6022 HV (0.06s/22.0kg/8.4V) Brushless Servo

Sale price
€78.90
Regular price
€89
You save
€10.10 (11%)
Tax included and shipping calculated at checkout
In stock and ready for shipping

Frequently Bought Together
SKU: BH6022

We Accept

PayPal

Product Information

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.

Features:
  • Ideal for 1/10 on road applications
  • Incredible efficiency and low power consumption
  • Aluminum case for good heat dissipation
  • NMB dual main bearings
  • 25T output shaft
  • 1-Year Limited Warranty
Specifications:
Type Digital
Bearing Dual
Motor Type Brushless

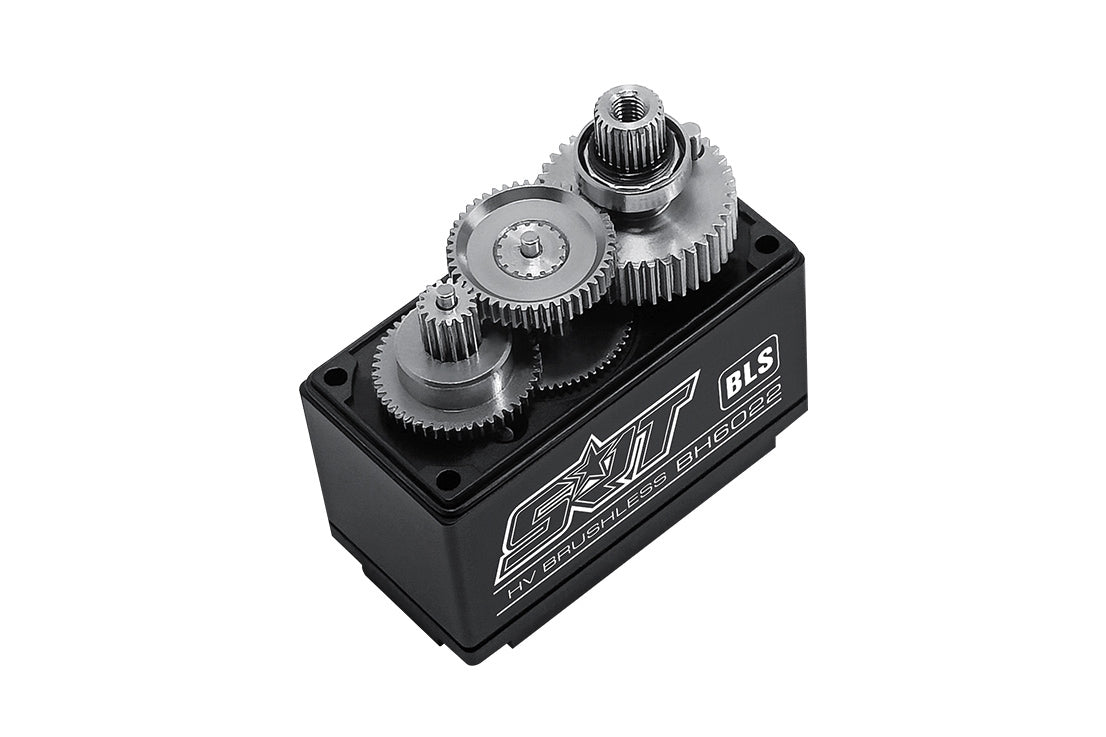

Gear Type Metal
Gear Material Titanium & Alu
Control System Pulse width control
Working Frequence 1520μs / 330hz
Operating Voltage dc6.0-8.4V
Operating Temperature Range -10 to + 60 degree
Operating Speed (6.0V) 0.088 sec/60 degrees at no load
Operating Speed (7.4V) 0.068 sec/60 degrees at no load
Operating Speed (8.4V) 0.06 sec/60 degrees at no load
Stall Torque (6.0V) 17.0kg.cm (236.1 oz/in)
Stall Torque (7.4V) 19.0kg.cm (263.9 oz/in)
Stall Torque (8.4V) 22.0kg.cm (305.5 oz/in)
Potentiometer Drive Direct drive
Dimensions 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
Weight 69.0g (2.43 oz)
Connector Wire Length jr 300mm
