SkyRC S100 Neo LiPo Charger 1-6s 10A 100W AC/DC

SkyRC / SK-100202-01 / S100 Neo LiPo Charger 1-6s 10A 100W AC/DC

The S100neo captivates with its stylish and ultra-compact design, offering a maximum power of 200W for various battery chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) as a smart AC/DC charger. Additionally, it can be used as a power supply device. The adjustable voltage reaches up to 30V, and the current can go up to 12A.

Building on the beloved e680 charger, the S100neo presents itself with an impressive power capacity while being able to make the best of its versatility and powerful charging capabilities. But the S100neo is more than just a simple charger; it also functions as an advanced digital power supply, offering precise and efficient charging with unparalleled accuracy in both Constant Current (CC) and Constant Voltage (CV) modes. Furthermore, it allows voltage measurement without the need for an active power supply, significantly simplifying the evaluation of battery voltage. All while the vibrant color LCD screen is enhancing the user experience through intuitive navigation and easy monitoring.

Features:

• Efficient successor to the well-known e680 charger
• 2 inputs, 1 output
• Max. 100W AC charging power
• Max. 200W DC charging power
• Time-saving charging with up to 12A
• Easy to use 3 button controls
• Lightweight and compact
• With PD/QC3.0 fast charging
• Compatible with Charger Master

Specifications:

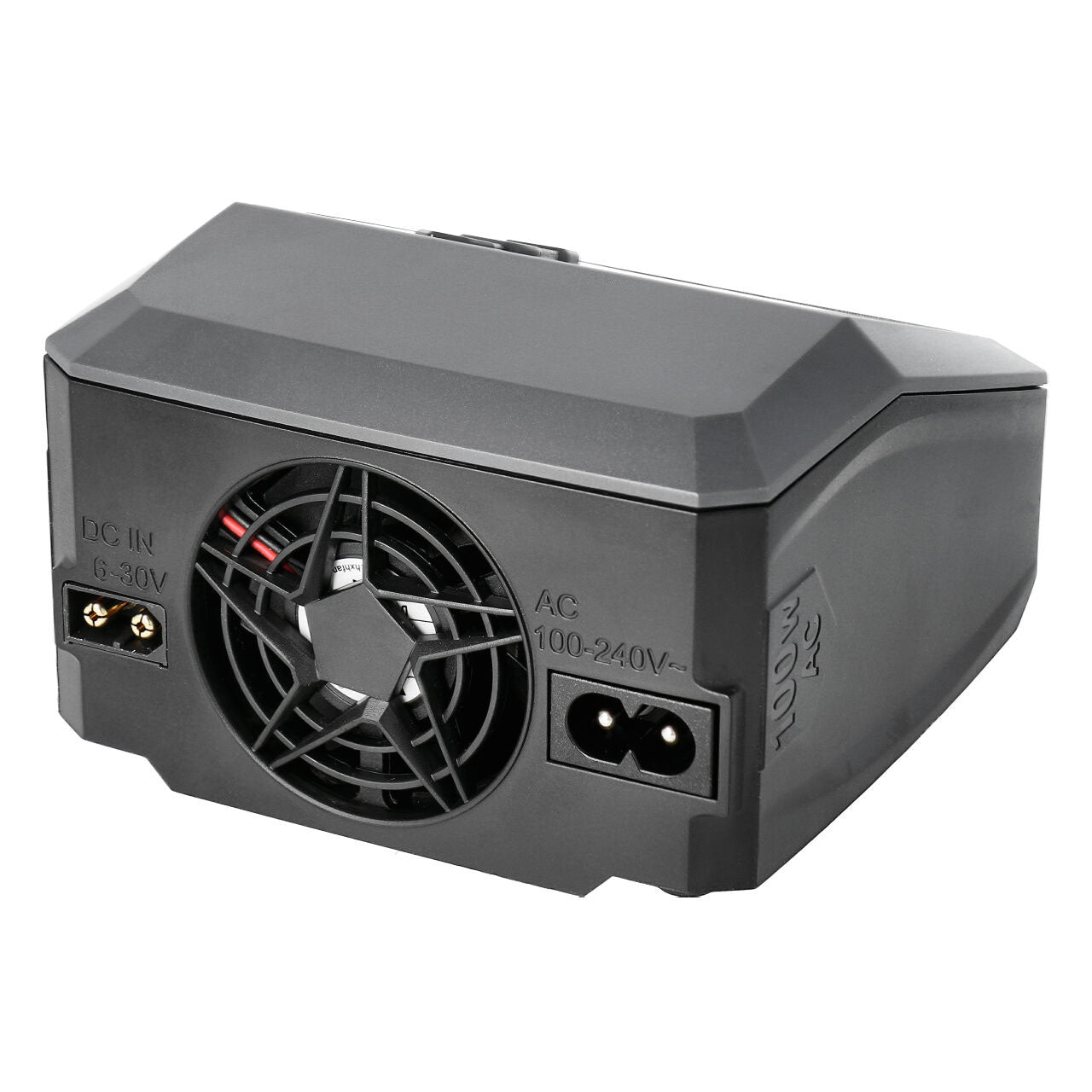

• Input Voltage: AC: 100-240V / DC: 6-30V
• Charge Power DC: max. 200W
• Charge Power AC: max. 100W
• Discharge Power: 5W (main port) / max. 20W (balance port, LiPo/6S)
• Charge Current: 0.1A - 12A
• Discharge Current: 0.1A - 2.0A
• Balance Current: max. 1.0A
• Display: 1.77'' TN-Display, 128x160px, 262k colors
• Battery Types: LiPo/LiHV/LiFe/LiIon: 1-6S / NiMH/NiCd: 1-15S / Pb: 3S-6S-12S
• Weight: 340g
• Dimensions: 105x105x62mm

DC Power Supply

• Voltage: 2V ~ 30V
• Current: 0.1A ~ 10A (Voltage 2V ~ 2.9V) / 0.1A ~ 12A (Voltage 3V ~ 30V)
• Over Current Protection: 0.1A (+- 0.1A) / 0.2A ~ 4A (+- 20%) / 4.1A ~ 10A (+- 10%) / 10.1A ~ 12A (+- 5%)
• Power: AC Input: max. 100W / DC Input: max. 200W

DC Motor Run-in

• Voltage: 3-12V
• Current: 1-5A
• Direction: Forward
• Time: 1-60min
• Protections: Motor Stall Protection / Over Current Protection / Overload Protection

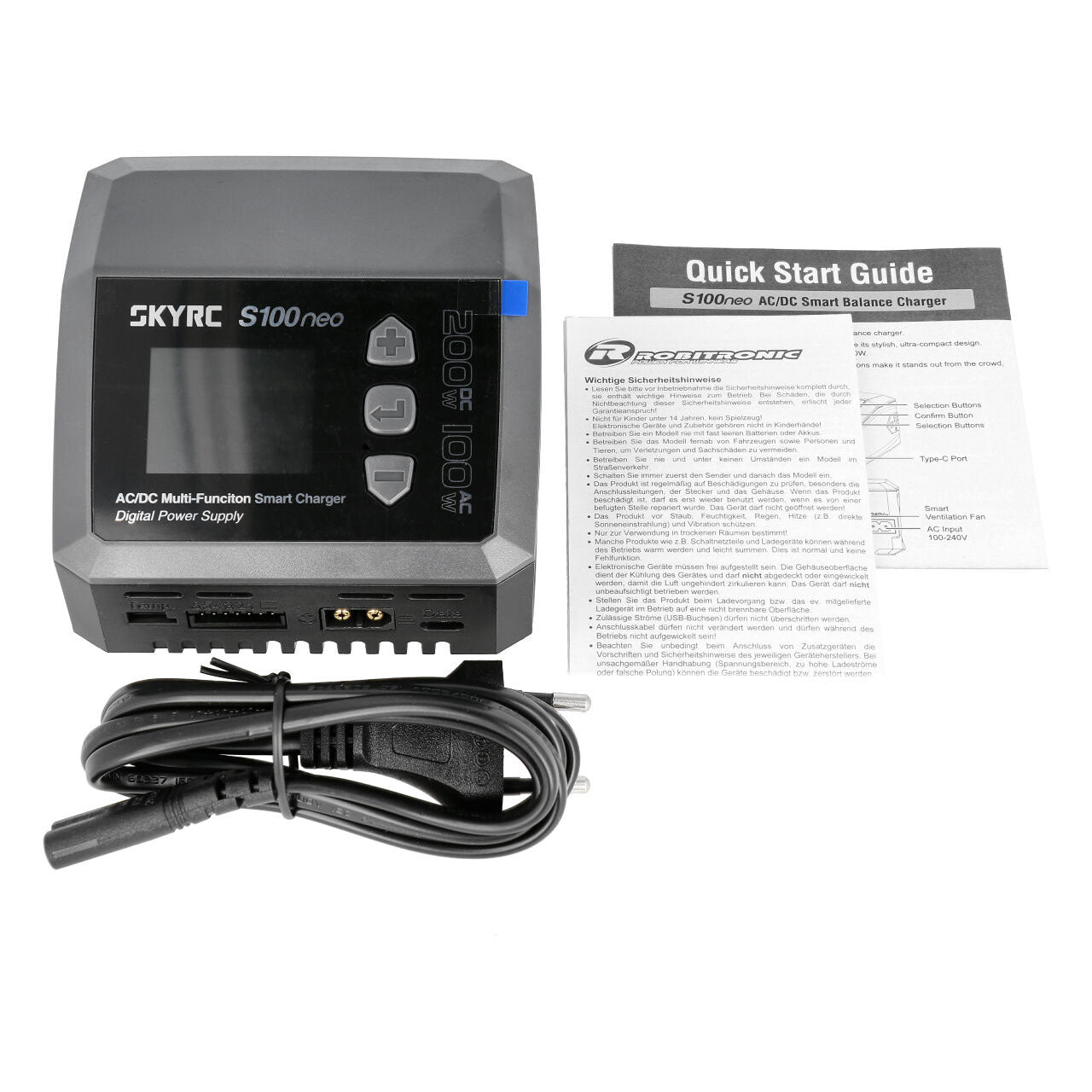

Delivery:

• 1x SKYRC S100neo Charger
• 1x Manual

MANUAL

Specifications:



Size and Weight





Case Material: PC-ABS V0
Case Size: 105*105*62mm
Weight: 340g



Display

Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K



Power

DC Input Voltage: 6-30V

AC Input Voltage: 100-240V 50/60Hz

Charger power:
AC: 100W MAX
DC: 200W MAX

Discharge power:
Max. 20W based on 6S(4.2V/S)

Battery

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S/12S



Charge and Discharge

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-12.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV：Max. 1000mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low-temperature charge, AGM charge/discharge

Add-on Features

Digital Power: CC/CV Mode
Brushed Motor Run-In
Battery Voltage Meter
